P-Solo Ribbon

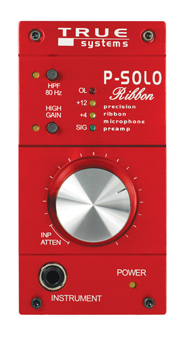

P-Solo RibbonThe True Systems P-SOLORibbon mic preamplifier is a single-channel, analog output, microphone/instrument preamplifier “super-tweaked” for superior performance with vintage and contemporary ribbon mics. With up to 76dB of gain (in 2 ranges), the P-SOLORibbon has an
electronically balanced, high-impedance mic input, discrete FET instrument input, 80Hz High Pass Filter, a 4-segment LED bar graph level meter with signal present and overload indicators, plus a continuously variable gain control. The back panel offers both XLR and TRS balanced outputs for easy interface (and zero latency monitoring) in any system.


• Superior results with ribbons and
dynamics and self-powered tube mics
• Up to 76dB gain, high input impedance
• Discrete FET instrument input
• HPF, dual outputs
• Internal linear AC supply
• Compact desktop/portable case
• Entry-level price for high-end
performance

The P-SOLORibbon is different because it uses a combination of discrete components and integrated circuits in a totally balanced, DC-coupled architecture to achieve extraordinarily clean and transparent performance with ribbon and dynamic microphones. The P-SOLORibbon will reveal more detail than you ever thought possible. (Note: not for active ribbon mics.) The extraordinary TRUE DI offers superior sonic quality comparable only to expensive outboard DI’s.


Gain (microphone): +15.5 to +70dB or +6dB (INP ATTEN mode)
High-Gain mode: +21.5 to +76dB or +12dB (INP ATTEN mode)
Gain (direct input):-4 to +50dB or -14dB (INP ATTEN mode)
High-Gain mode: +2 to +56dB or -8dB (INP ATTEN mode)
Frequency Response (gain=40 dB): 1.5 Hz to 500 kHz (+0/-3 dB)
Maximum Output Level: +31 dBu (+27 dBu in INP ATTEN mode)
Maximum Input Level: +25 dBu (+25 dBu in INP ATTEN mode)
Input Impedance (microphone): 10 Kohms
Input Impedance (direct input): 2.5 Mohms
Noise (Rs=0 Ohms): -132 dB e.i.n.
Slew Rate: > 40 V/uS
CMRR (CMV=+10 dBu): 85 dB
THD (+26 dBu, 100 kOhm): .0008%
Power Requirements: 115/230VAC, 50/60 Hz, 9 Watts
Knob extension: 0.6 in. (15.3 mm)
Weight: 2.3 lbs. (1.1 kg)
Dimensions:
W= 3. 0 in. (76. 2 mm)
D = 6. 0 in. (153 mm)
H = 6. 0 in. (253 mm)
