Precision 8
|

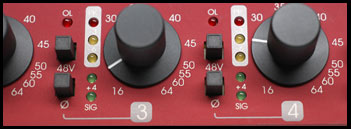

Precision 8 input channel detail |
The Precision 8 is designed to provide the
detailed, transparent sonic performance necessary for the
highest quality direct tracking and live sound applications.
It includes a unique combination of features which make it
useful as a complete input system for MDM's, HDR's, and DAW's.
Two sonically accurate discrete FET instrument inputs (DI's)
are available for recording or live sound applications in
which realistic, unaffected sound quality is desired. The
5-segment peak-hold level metering with selectable peak reference
allows rapid optimization of program levels between the PRECISION
8 and devices to which it is interfaced.
PRECISION 8 is ideal for location recording due to its 8-channel
single rack unit format, smooth continuous gain controls,
useful level metering, and easy interconnect. The integral
MS decoder provides creative spatial image control that is
particularly useful in attaining an exciting stereo image
with minimum effort and microphone repositioning.
With the emphasis shifting to digital audio platforms and
modular configurations, software "plug-ins" are
replacing many outboard signal processors. Other than the
microphone itself, the microphone preamplifier is the most
significant analog device remaining in the signal chain. PRECISION
8, with its sonically pure design, simple-to-use features,
and unparalleled cost/performance value, is the ultimate solution
for state-of-the-art digital recording studios and project
studios.
|
FEATURES
|
|
Precision 8 rear channel input showing DI combo connectors |
• Eight highly transparent solid state microphone
preamps in a 1 unit rack configuration
• Challenges the recognized leaders in sonic accuracy
and performance
• Built-in M-S (Mid-Side) decoding for creative spatial
image control
• Active, high-impedance instrument inputs ("DI's")
selectable on two channels
• 5-segment level indicators with peak-hold feature
and selectable peak reference
• Smooth continuous gain controls
• Easy interface to MDM's, HDR's, DAW's, or consoles
• Dual DB25/TRS outputs for flexible interconnection
• Elegant, sturdy physical design
• Exceptional cost per channel value
DESIGN
APPROACH
| |
Precision 8 rear panel output connectors |
PRECISION 8 uses
a high-voltage composite architecture with discrete devices
plus integrated circuits. It offers very low noise and distortion
as well as high headroom. The totally balanced dual-servo
design eliminates nearly all capacitors in the audio path
and is DC-coupled at the output. All this results in a very
detailed and transparent sound quality which challenges
even the most esoteric microphone preamps.
|
Precision 8 channel 1 and 2 MS selector |
SPECS
Gain (microphone): +16 to +64 dB
Gain (direct input): -4 to +44 dB
Frequency Response (gain=40 dB): 1.5
Hz to 500 kHz (+0/-3 dB)
Maximum Output Level: +31 dBu
Maximum Input Level: +15 dBu
Input Impedance (microphone): 5.5 kOhms
Input Impedance (direct input): 2 Mohms
Noise (Rs=0 Ohms): -132 dB e.i.n.
Slew Rate: > 40 V/uS
CMRR (CMV=+10 dBu): 85 dB
Crosstalk: -130 dB
THD (+26 dBu, 100 kOhm): .0008%
Power Requirements: 120VAC, 60 Hz, 44
Watts
Dimensions (chassis):
W=17.4 in. (442 mm)
D =13.4 in. (341 mm)
H =1.74 in. (44.2mm)
Knob extension: 1 in. (25.4 mm)
Weight: 14.5 lbs. (6.6 kg)
Download Manual
Download
Brochure
Typical performance. Specifications subject to change
without notice.
|
|
|
 |
