P2 Analog
|
P2 Analog stereo phase correlation meter |
The P2analog is designed to provide detailed,
transparent sonic performance necessary for the most critical
direct tracking and live sound applications. It includes a
unique combination of functions that make it useful as a complete
input system for standalone or PC-based recording systems.
And, the P2analog has special features that provide the serious
musician or recordist with useful tools to get the best sound
more quickly and easily.
In addition to our acclaimed microphone inputs, the P2analog
features two instrument direct inputs (DIs) offering sonic
performance previously thought to be available only with dedicated,
high-end DIs. You'll get incredible articulation and control
for electric bass, detail and smoothness for stringed instruments
and punchy, clean sound with keyboards.
Even with today's emphasis on powerful digital audio platforms
and software plug-ins to perform signal-processing tasks,
the issue of microphone placement remains a critical variable
in determining the quality of your final sonic product. The
P2analog incorporates powerful features that assist you in
achieving optimum microphone placement for nearly any stereo
recording situation.
|
FEATURES
|

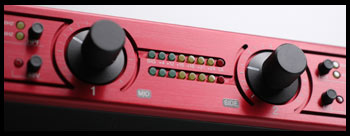

Input channels and meters |
• Ultimate sonic performance for critical recording
and sound reinforcement
• Two active high-impedance DIs - comparable to high-end
dedicated DIs
• M-S (Mid-Side) Decoder for creative spatial image
control
• Stereo Phase Correlation Display speeds effective
mic positioning
• Selectable high-pass filters
• Relay-switched signal routing
• Dual gain range
• Solid construction - with striking, machined front
panel
DESIGN
APPROACH
|
Rear panel input and outut connectors |
P2analog features
a high-voltage composite architecture with discrete devices
plus integrated circuits. The totally balanced, dual servo,
dc-coupled design provides exceptional transient response,
head room, imaging and noise performance. Military grade,
hand-matched components are utilized in critical circuit
areas. All signal switching is done via hi-reliability gold-contact
relays in order to maintain an extremely short signal path.
These design features result in the transparent, detailed
sound quality for which TRUE preamps have become known.
SPECS
Gain (microphone): 3.5 to 52dB and 15.5
to 64dB (dual range)
Gain (direct input): -16 to 32dB and -4
to 44dB
Frequency Response: 1.5 Hz to 500kHz (-3dB)(gain=40dB)
Maximum Output Level: +31 dBu (+27 dBu
in low gain mode)
Maximum Input Level:
+15 dBu (+25 dBu in low gain mode)
Input Impedance (microphone): 5.5 kOhm
Input Impedance (direct input): 2.5 Mohm
Noise (Rs=0 Ohms): -132 dB e.i.n.
Slew Rate: >40 V/uS
CMRR (CMV=+10 dBu): 85 dB
THD (+26 dBu, 100 kOhm): .0008%
Download
Operation Manual
Download
Brochure
Typical performance. Specifications subject to change without
notice.
|
|
|
|
